Features and Options:
- 32″ to 55″ Outdoor All-weather kiosk
- Portrait-oriented LCD
- Single or Double-sided Display
- Stainless Steel with Powdercoat
- J1900/i3/i5/i7 6th Gen/7th Gen/8TH Gen.
- Android/Linux
- 2GB Dedicated Video Optional
- Touch LCD only (no PC) also available
- Media Player Mounting
- 1500-2000 NIT LCD brightness (check size)
- 8GB Wide-temperature RAM
- 128GB Wide-temperature SSD
- 6mm AR coated Vandal-proof tempered glass
- 10 Point PCAP Touchscreen
- Integrated Heater and Forced-air Cooling Fans
- Integrated lightning strike suppression
- 2x 5W waterproof speakers
- Windows 10 Enterprise or Windows 11
Peripherals & Other Options
|
|
|
|
|
|
|
|
|
* Our ODKFS and IDKFS can be custom-configured using BrightSign or other media players. The media players allow for remote content management—this is an important feature for many of our clients that are focused on advertising and content control for multiple kiosks.
**I&E can custom-mount customer’s peripherals as long as they are outdoor-rated and will fit into the design.

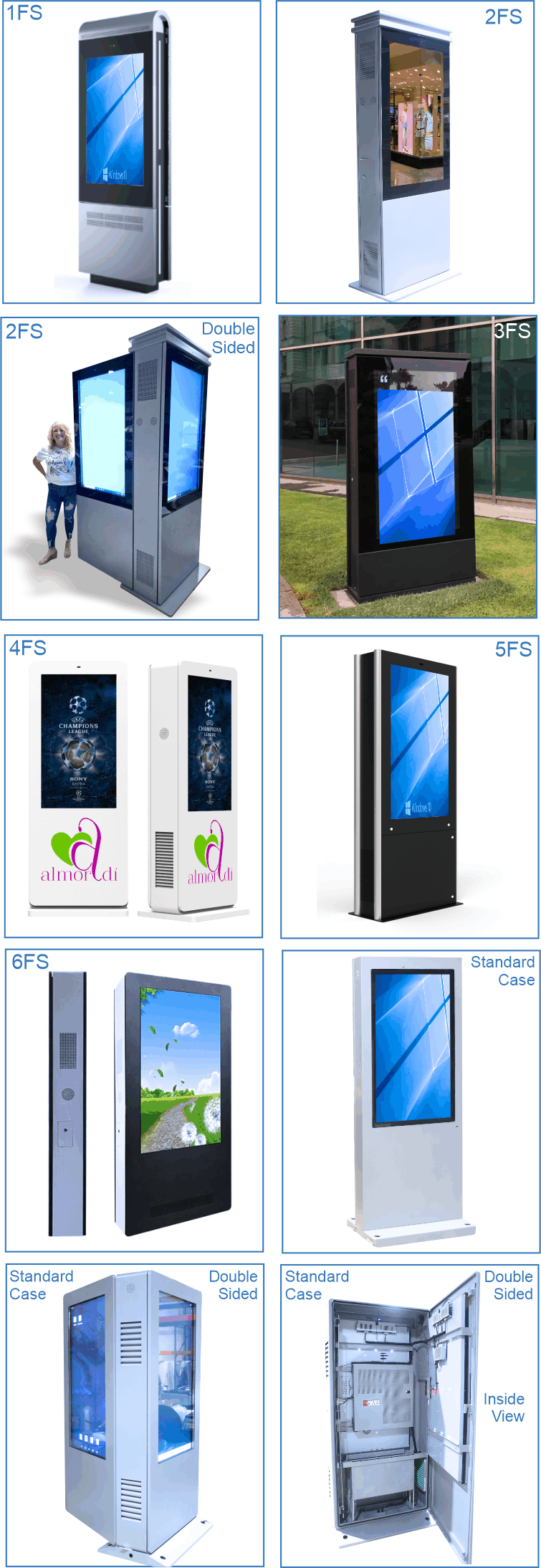

Available Case Model Designs
ODKF Features And Layout – 304SS Standard Model Shown:
Standard ODKF Specifications
| Standard ODKF Specifications | ||||
|---|---|---|---|---|
| ODKF-32 | ODKF-43 | ODKF-49 | ODKF-55 | |
| Display | ||||
| Size | 32″ | 43″ | 49″ | 55″ |
| Aspect Ratio | (16:9) | (16:9) | (16:9) | (16:9) |
| Native Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| Contrast | (2000:1) | (2000:1) | (2000:1) | (2000:1) |
| Response Time | 6 ms | 6 ms | 8 ms | 8 ms |
| Brightness with AR Coating | 2000NIT | 2000NIT | 2000NIT | 2000NIT |
| Glass | 6mm Tempered Glass | |||
| Touch | Rainproof PCAP | Rainproof PCAP | Rainproof PCAP | Rainproof PCAP |
| Viewing Angle | 176°/176° | 176°/140° | 176°/176° | 176°/176° |
| PC Specifications (standard) | ||||
| Processor | J1900, i3/i5/i7 (6th/7th/8th Gen) – (Android RK3399 Optional) | |||
| Chipset | Intel 6th Gen, 7th Gen, 8th Gen | |||
| RAM | 8GB (16GB Max i3/i5/i7) -40 to +80C Wide-temperature RAM | |||
| Storage | 128GB (256GB option) -40 to +80C Wide-temperature Solid State Drive | |||
| Graphics J1900 | Embedded Graphics | |||
| Graphics i3/i5/i7 | 2GB Card (embedded graphics optional) | |||
| Ports I/O J1900 | 1X LAN, 4X USB 3.0 (1 used by touch), 1X HDMI, 1X VGA, Audio In/Out | |||
| Ports I/O i3/i5/i7 | 1X LAN, 4X USB 3.0 (1 used by touch), 2X HDMI, Audio In/Out | |||
| WiFi | Mini-PCIe WiFi card w/external antenna | |||
| Android Specifications (optional) | ||||
| Rockchip® RK3399 | Double Cortex-A72 + Four Cortex-A53(2.0ghZ) 64 bit | |||
| RAM | 4GB DDR3 | |||
| Memory | 16GB Flash | |||
| Extended Storage | SD Card Socket | |||
| OS Version | 7.1 – 8.0 | |||
