IDKFS Series

Features and Options:
- 32″ to 55″ Indoor Portrait Touch Kiosk
- Single or 2-sided displays
- Ultra-Slim Profile
- J1900/i3/i5/i7 6th Gen/7th Gen/8th Gen
- Android Board Option
- 2GB Dedicated Video Optional
- Touch LCD only (no PC) also available
- 350 – 400 NIT LCD brightness (check size)
- 8GB RAM
- 128GB SSD
- 3mm Vandal-proof tempered glass
- 10 Point PCAP Touchscreen
- Forced-air Cooling Fans
- Windows 10 Enterprise
- 2x 5W speakers
Peripherals & Other Options
|
|
|
|
|
|
|
|
|
* Our IDKFS can be custom-configured using BrightSign or other media players. The media players allow for remote content management—this is an important feature for many of our clients that are focused on advertising and content control for multiple kiosks.
**I&E can custom-mount customer’s peripherals as long as they are outdoor-rated and will fit into the design.

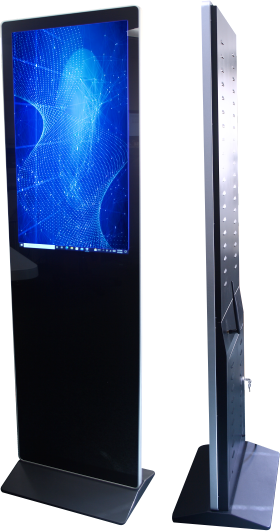

Portrait or Landscape Indoor Floor Stand Touch Kloaks

IDKFS Peripheral Options (works with portrait or landscape models)

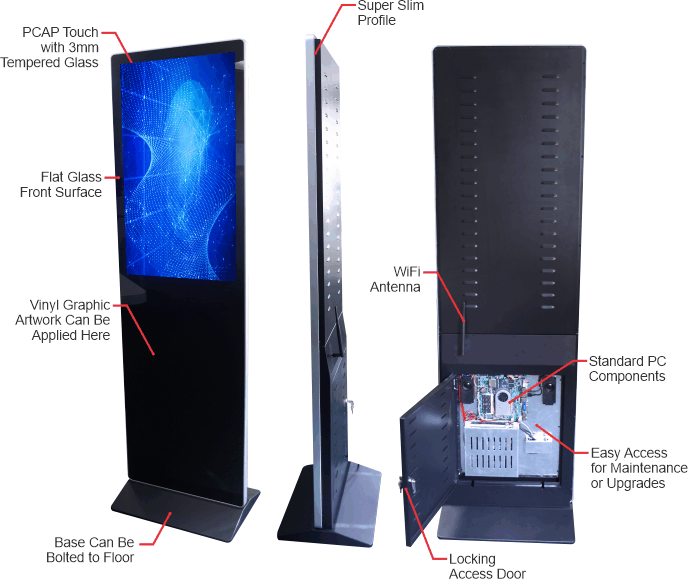

IDKFS Features And Layout

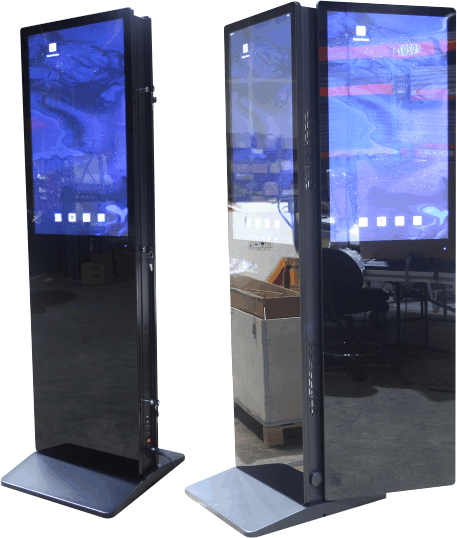

IDKFS Double Sided

IDKFS Graphics Decal Examples:

Standard IDKFS Specifications
| Standard IDKFS Specifications | ||||
| IDKFS-32 | IDKFS-43 | IDKFS-49 | IDKFS-55 | |
| Display | ||||
| Size | 32” | 43″ | 49″ | 55″ |
| Drawing | IDKFS-32DWG | IDKFS-43DWG | IDKFS-49DWG | IDKFS-55DWG |
| Aspect Ratio | (16:9) | (16:9) | (16:9) | (16:9) |
| Native Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| Contrast | (2000:1) | (2000:1) | (2000:1) | (2000:1) |
| Response Time | 6 m/sec | 6 m/sec | 8 m/sec | 8 m/sec |
| Brightness | 350NIT | 400NIT | 400NIT | 400NIT |
| Glass | 3mm Tempered Glass | |||
| Touch | PCAP | PCAP | PCAP | PCAP |
| Viewing Angle | 176°/176° | 176°/140° | 176°/176° | 176°/176° |
| PC Specifications (standard) | ||||
| Processor | J1900, i3/i5/i7 (6th/7th/8th Gen) – (Android Optional) | |||
| Chipset | Intel 6th Gen, 7th Gen, 8th Gen | |||
| RAM | 8GB (16GB Max i3/i5/i7) RAM | |||
| Storage | 128GB (256GB option) Solid State Drive | |||
| Graphics J1900 | Embedded Graphics | |||
| Graphics i3/i5/i7 | 2GB Card (embedded graphics optional) | |||
| Ports I/O J1900 | 1X LAN, 4X USB 3.0 (1 used by touch), 1X HDMI, 1X VGA, Audio In/Out | |||
| Ports I/O i3/i5/i7 | 1X LAN, 4X USB 3.0 (1 used by touch), 2X HDMI, Audio In/Out | |||
| WiFi | Mini-PCIe WiFi card w/external antenna | |||
| Android Specifications (optional) | ||||
| Rockchip® RK3399 or Higher | Double Cortex-A72 + Four Cortex-A53(2.0ghZ) 64 bit | |||
| RAM | 4GB DDR3 | |||
| Memory | 16GB Flash | |||
| Extended Storage | SD Card Socket | |||
| OS Version | 7.1 – 12.0 | |||
| OS Language | English (default, multi-language) | |||
| I/O | USB2.0*2, RJ-45*1, SD socket*1, HDMI*1, DC*1, Audio*1 | |||
| Environmental | ||||
| Operating temperature | 0 to 40°C | |||
| Operating Humidity | 20%-80%RH | |||
| Cooling | Forced Air Fan Cooling | |||
| Power Requirements | ||||
| AC Input | 110V~240V | 110V~240V | 110V~240V | 110V~240V |
| Power Watts Max. | 370 | 370 | 370 | 370 |
| SPECIFICATIONS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE – IF A CERTAIN SPEC IS CRITICAL TO YOU ALWAYS ASK | ||||
