Custom Device Options:
Media Players: Our ODKFS and IDKFS can be custom-configured using BrightSign or other media players. The media players allow for remote content management—this is an important feature for many of our clients that are focused on advertising and content control for multiple kiosks.
Other Devices: I&E can custom-mount customer’s peripherals as long as they are outdoor-rated and will fit into the design.
Features and Options:
- 15″ to 55″ Outdoor All-weather kiosk
- Intel J1900/i3/i5/i7 6th/8th/10th Gen
- Android RK3399 OS Optional
- 2GB Nvidia Dedicated Video Optional
- Touch LCD only (no PC) also available
- 1500-2000 NIT LCD brightness (check size)
- 8GB Wide-temperature RAM
- 128GB Wide-temperature SSD
- 6mm AR coated Vandal-proof glass
- PCAP Rainproof Touch
- Integrated Heater and Forced-air Cooling Fans
- Optional Solid State Cooling
(15″ minimum size) - Integrated transient suppression
- 2x 5W waterproof speakers
- Outdoor polyester powder coat over carbon steel
- Optional 304 Stainless Steel

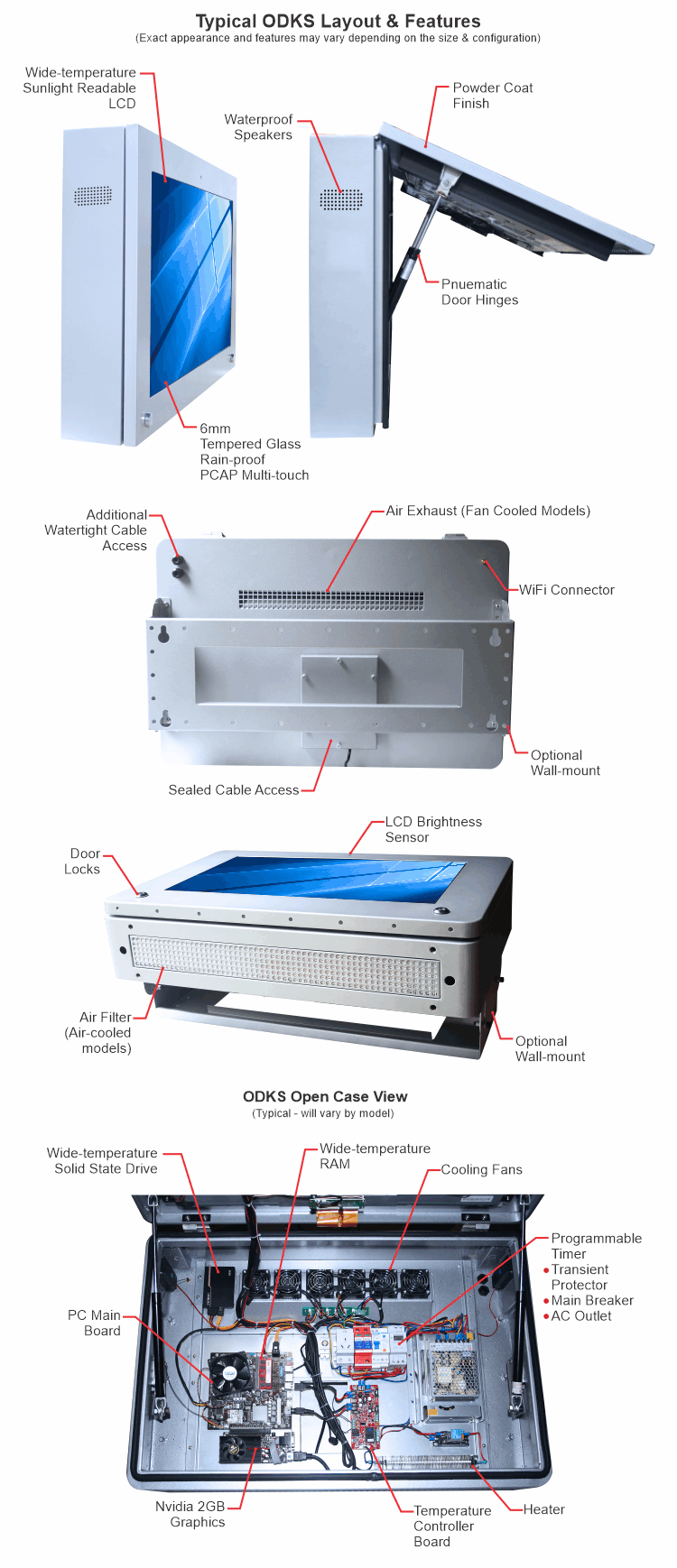

Typical Outdoor Kiosk Layout & Features
(Exact layout and features will vary depending on size and configuration)

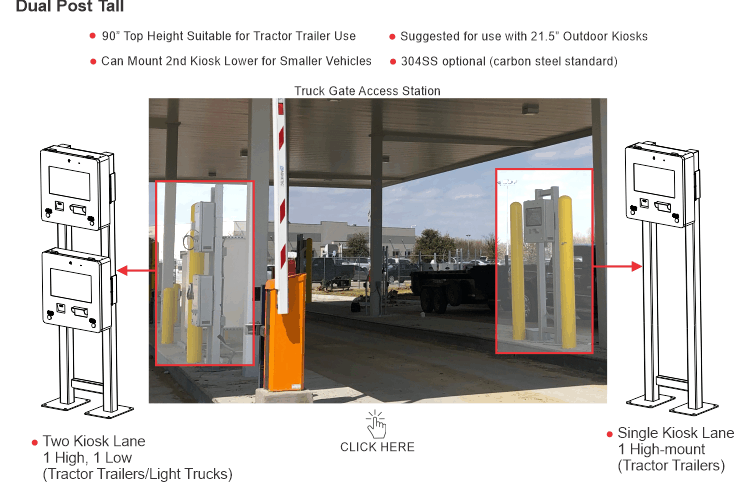

Standard ODKS Mounting Stand Options

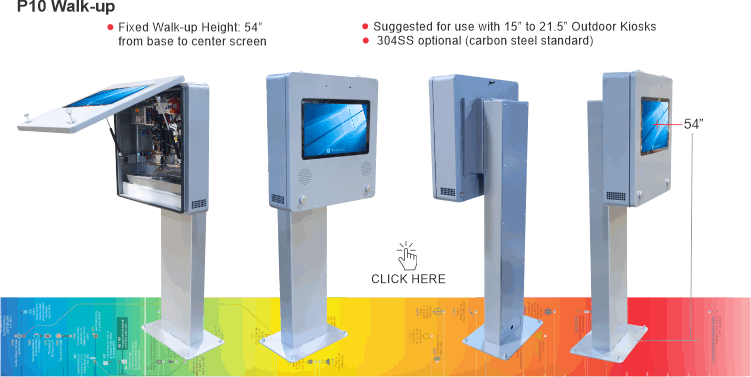

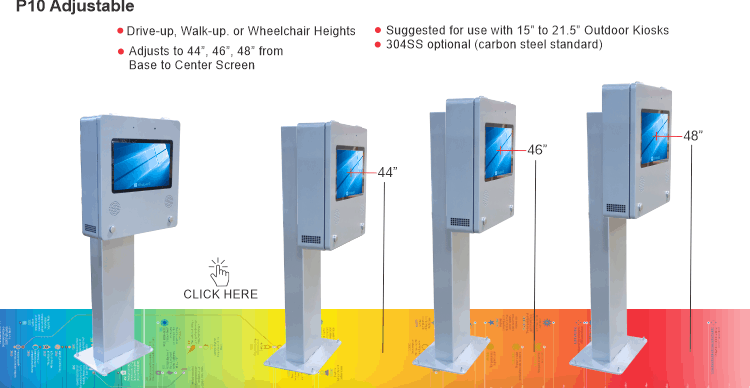

P10 Single Column Heavy Duty Stands (click stand type below for more details):
ODKS 15″, 17″, 19″ Outdoor Kiosks for Gate Entry, Access Control, Telephone Entry (VOIP)
Specifications
| ODKS-15 | ODKS-17 | ODKS-19 | |
| Display | |||
| Size | 15″ | 17″ | 19″ |
| Drawing (size will change with peripherals) | ODKS-15-BC-WC | ||
| Aspect Ratio | (4:3) | (4:3) | (4:3) |
| Native Resolution | 1024 x 768 | 1280 x 1024 | 1280 x 1024 |
| Contrast | (2000:1) | (2000:1) | (2000:1) |
| Response Time | 6 m/sec | 6 m/sec | 6 m/sec |
| Brightness with AR Coating | 1500NIT | 1500NIT | 1500NIT |
| Glass | 6mm Tempered Glass | ||
| Touch | Rainproof PCAP | Rainproof PCAP | Rainproof PCAP |
| Viewing Angle | 176°/176° | 176°/140° | 176°/176° |
| PC Specifications (standard) | |||
| Processor | Intel J1900, i3/i5/i7 (6th Gen) – (Android RK3399 Optional) | ||
| Chipset | Intel H110 (6th Gen.) | ||
| RAM 8GB Max J1900/16GB i3/i5/i7 | 8GB (16GB Max i3/i5/i7) -40 to +80C Wide-temperature RAM | ||
| Storage | 128GB (256GB option) -40 to +80C Wide-temperature Solid State Drive | ||
| Graphics J1900 | Intel Graphics | ||

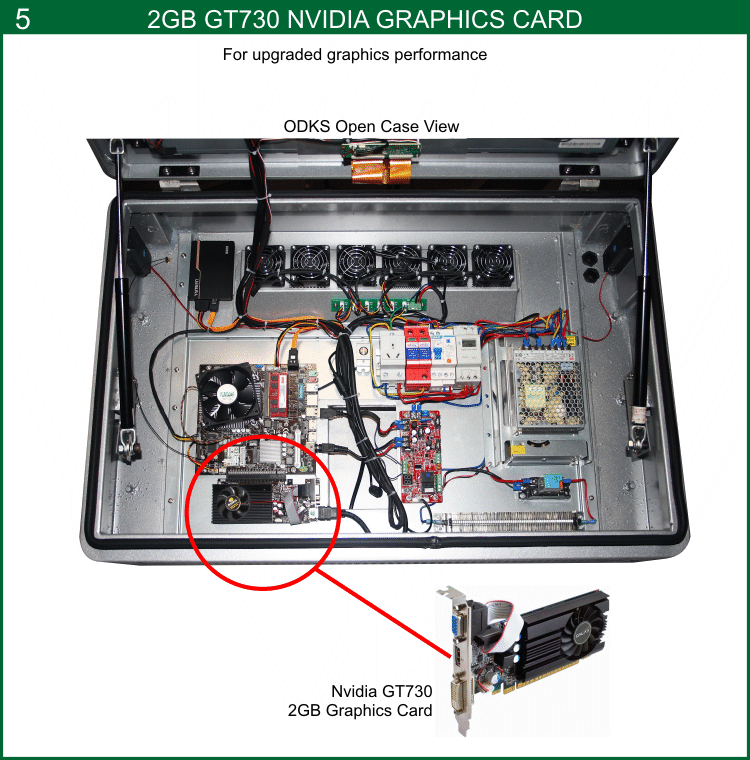

| Graphics i3/i5/i7 | 2GB Nvidia GT730 Card (embedded Intel optional) | ||
| Ports I/O J1900 | 1X LAN, 4X USB 3.0 (1 used by touch), 1X HDMI, 1X VGA, Audio In/Out | ||
| Ports I/O i3/i5/i7 | 1X LAN, 4X USB 3.0 (1 used by touch), 2X HDMI, Audio In/Out | ||
| WiFi | Mini-PCIe WiFi card w/external antenna | ||
| Standard Peripherals (Noise cancelling MIC and amplifier can be removed if not necessary) | |||
| Speakers | 2 Front-mounted speakers | ||
| Microphone | Top-mounted Noise-cancelling MIC | ||
| Amplifier | Digital Audio Amplifier | ||
| Android Specifications (optional) | |||
| Rockchip® RK3399 | Double Cortex-A72 + Four Cortex-A53(2.0ghZ) 64 bit | ||
| RAM | 4GB DDR3 | ||
| Memory | 16GB Flash | ||
| Extended Storage | SD Card Socket | ||
| OS Version | 7.1 | ||
| OS Language | English (default, multi-language) | ||
| I/O | USB2.0*2, RJ-45*1, SD socket*1, HDMI*1, DC*1, Audio*1 | ||
| Environmental | |||
| Sealing | Weatherized Kiosk | ||
| Operating temperature | -30 to 50C (-22 to 122F) | ||
| Operating Humidity | 20%-80%RH | ||
| Heating/Cooling | Forced Air Fan Cooling or Thermal Block Cooling with Heater | ||
Standard ODKS Specifications – 18.5″ to 43″
| ODKS-18 | ODKS-22 | ODKS-27 | ODKS-32 | ODKS-43 | |
| Display | |||||
| Size | 18.5″ | 21.5′ | 27′ | 32” | 43″ |
| Drawing (size will change with peripherals) | ODKS-18 | ODKS-22 | ODKS-27 | ODKS-32 | ODKS-43 |
| Aspect Ratio | (16:9) | (16:9) | (16:9) | (16:9) | (16:9) |
| Native Resolution | 1366 x 768 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| Contrast | (2000:1) | (2000:1) | (2000:1) | (2000:1) | (2000:1) |
| Response Time | 6 m/sec | 6 m/sec | 6 m/sec | 6 m/sec | 6 m/sec |
| Brightness with AR Coating | 1500NIT | 1500NIT | 1500NIT | 2000NIT | 2000NIT |
| Glass | 6mm Tempered Glass | ||||
| Touch | Rainproof PCAP | Rainproof PCAP | Rainproof PCAP | Rainproof PCAP | Rainproof PCAP |
| Viewing Angle | 176°/176° | 176°/140° | 176°/176° | 176°/176° | 176°/176° |
| PC Specifications (standard) | |||||
| Processor | Intel J1900, i3/i5/i7 (6th Gen) – (Android RK3399 Optional) | ||||
| Chipset | Intel H110 (6th Gen.) | ||||
| RAM 8GB Max J1900/16GB i3/i5/i7 | 8GB (16GB Max i3/i5/i7) -40 to +80C Wide-temperature RAM | ||||
| Storage | 128GB (256GB option) -40 to +80C Wide-temperature Solid State Drive | ||||
| Graphics J1900 | Intel Graphics | ||||
| Graphics i3/i5/i7 | 2GB Nvidia GT730 Card (embedded Intel optional) | ||||
| Ports I/O J1900 | 1X LAN, 4X USB 3.0 (1 used by touch), 1X HDMI, 1X VGA, Audio In/Out | ||||
| Ports I/O i3/i5/i7 | 1X LAN, 4X USB 3.0 (1 used by touch), 2X HDMI, Audio In/Out | ||||
| WiFi | Mini-PCIe WiFi card w/external antenna | ||||
| Android Specifications(optional) | |||||
| Rockchip® RK3399 | Double Cortex-A72 + Four Cortex-A53(2.0ghZ) 64 bit | ||||
| RAM | 4GB DDR3 | ||||
| Memory | 16GB Flash | ||||
| Extended Storage | SD Card Socket | ||||
| OS Version | 7.1 | ||||
| OS Language | English (default, multi-language) | ||||
| I/O | USB2.0*2, RJ-45*1, SD socket*1, HDMI*1,DC*1, Audio*1 | ||||
| Environmental | |||||
| Sealing | Weatherized kiosk | ||||
| Operating temperature | -30 to 50C (-22 to 122F) | ||||
| Operating Humidity | 20%-80%RH | ||||
| Heating/Cooling | Forced Air Fan Cooling or Thermal Block Cooling with Heater | ||||
| Power Requirements | |||||
| AC Input | 110V~240V | 110V~240V | 110V~240V | 110V~240V | 110V~240V |
| Max Power (Watts) | 600 | 600 | 700 | 700 | 700 |
| Mechanical | |||||
| Dimensions HxWxD (mm) | 570x380x153 | 650x440x153 | 800x530x175 | 875x655x185 | 1120x730x176 |
| Net Weight (lbs) | 60 | 65 | 102 | 195 | 235 |
| Notes: | Dimensions & weights shown are for standard units with no peripherals |
Standard ODKS Specifications – 47″ – 55″
| ODKS-46 | ODKS-49 | ODKS-55 | |
| Display | |||
| Size | 46″ | 49″ | 55″ |
| Drawing (Size will change with peripherals) | ODKS-46 | ODKS-49 | ODKS-55 |
| Backlight | LED | LED | LED |
| Aspect Ratio | (16:9) | (16:9) | (16:9) |
| Native Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| Contrast | (2000:1) | (2000:1) | (2000:1) |
| Response Time | 8 m/sec | 8 m/sec | 8 m/sec |
| Brightness with AR Coating | 2000NIT | 2000NIT | 2000NIT |
| Glass | 6mm Tempered Glass | ||
| Touch | PCAP (not rainproof) | Rainproof PCAP | Rainproof PCAP |
| Viewing Angle | 176°/176° | 176°/140° | 176°/176° |
| PC Specifications (standard equipped) | |||
| Processor | Intel J1900, i3/i5/i7 (6th Gen) – (Android RK3399 Optional) | ||
| Chipset | Intel H110 (6th Gen.) | ||
| RAM 8GB Max J1900/16GB i3/i5/i7 | 8GB (16GB Max. i3/i5/i7) -40 to +80C Wide-temperature RAM | ||
| Storage | 128GB (256GB option) -40 to +80C Wide-temperature Solid State Drive | ||
| Graphics J1900 | Intel Graphics | ||
| Graphics i3/i5/i7 | 2GB Nvidia GT730 Card (embedded Intel optional) | ||
| Ports I/O J1900 | 1X LAN, 4X USB 2×3.0, 2×2.0 (1 used by touch), 1X HDMI, 1X VGA, Audio In/Out | ||
| Ports I/O i3/i5/i7 | 1X LAN, 4X USB 3.0 (1 used by touch), 2X HDMI, Audio In/Out | ||
| WiFi | Mini-PCIe WiFi card w/external antenna | ||
| Android Specifications (optional) | |||
| Rockchip® RK3399 | Double Cortex-A72 + Four Cortex-A53(2.0ghZ) 64 bit | ||
| RAM | 4GB DDR3 | ||
| Memory | 16GB Flash | ||
| Extended Storage | SD Card Socket | ||
| OS Version | 7.1 | ||
| OS Language | English (default, multi-language) | ||
| I/O | USB2.0*2, RJ-45*1, SD socket*1, HDMI*1,DC*1, Audio*1 | ||
| Environmental | |||
| Sealing | Weatherized kiosk | ||
| Operating temperature | -30 to 50C (-22 to 122F) | ||
| Operating Humidity | 20%-80%RH | ||
| Heating/Cooling | Forced Air Fan Cooling or Thermal Block Cooling with Heater | ||
| Power Requirements | |||
| AC Input | 110V~240V | 110V~240V | 110V~240V |
| Max Power (Watts) | 800 | 800 | 800 |
| Mechanical | |||
| Dimensions HxWxD (mm) | 800x1230x180 | 830x1291x180 | 910x1430x180 |
| Net Weight (lbs) | 240 | 255 | 265 |
| Notes: | Dimensions & weights shown are for standard units with no peripherals |
