SLT Series Touch AIO

SLT Series Touch Screen All-in-Ones

SLT-342c

Features and Options:

  • Intel J1900 Processor
  • Intel Core-i3, i5, or i7 Processors
  • Android RK3399 Model Optional
  • TPM Option
  • 10.1” to 27” LCD size
  • PCAP Multi-touch
  • IP-65 Front
  • 8GB RAM – 16GB RAM
  • 500GB HDD or Solid State Drive
  • Integrated WiFi
  • Integrated Speakers
  • Wall-mount – Wall-mount Bracket Included
  • Panel-mount – Panel-mount Clips Included
  • Desktop-mount – Desk-mount Stand Included
  • Rugged metal enclosure
  • Anodized aluminum Bezel
  • Windows 10 Installed with recovery image
  • Custom Software Configuration
SLT CPU & Display Size Specs
Power Filter Protection

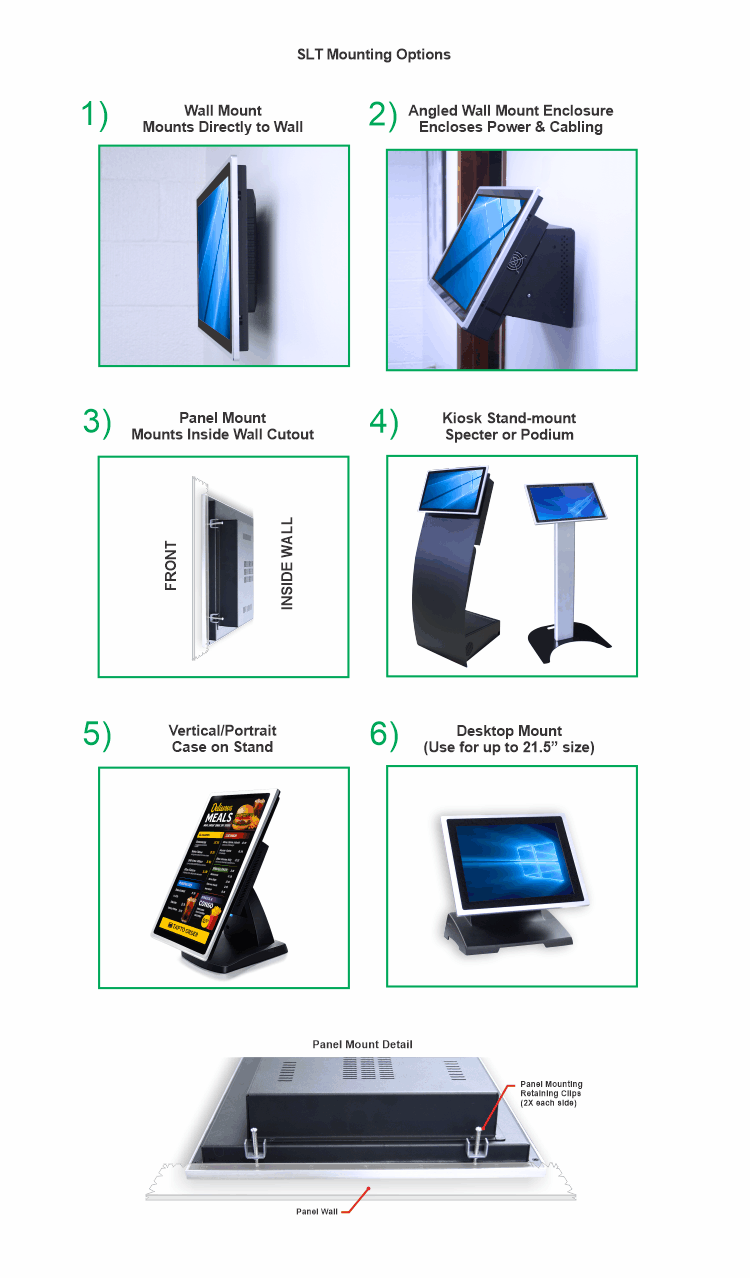

Mounting Options

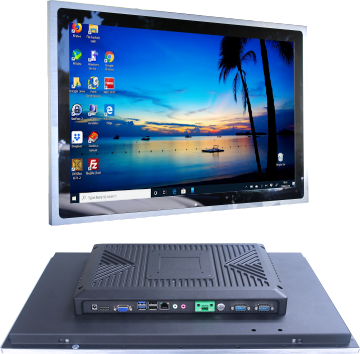

SLT Series Touch AIO Layout & Features

slt-mounting5-ta
slt-mounting5-t

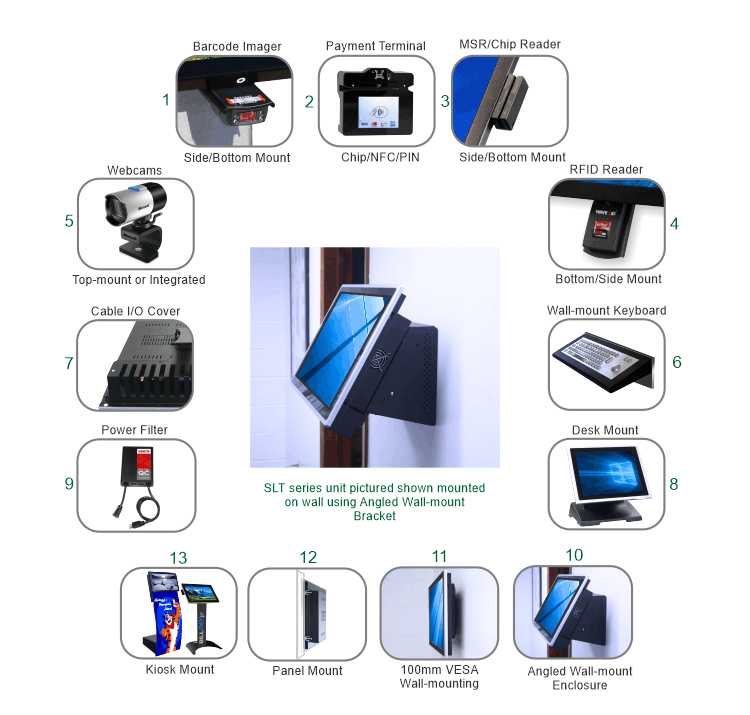

Touch AIO Peripheral Options

Option 1
Side-mount 3-Track MSR

option-msr-side-b
Magtek bi-direction, 3-track

Option 2
Bottom-mount 3-Track MSR

option-msr-bottom-a
Magtek bi-direction, 3-track

Option 3
Bottom-mount 3-Track MSR + Barcode

option-msr-barcode-bottom-b
Magtek bi-direction, 3-track 2D Barcode Imager

Option 4
Side-mount Chip Reader + 3-Track MSR

option-augusta-side-a
August Chip/MSR Combo

Option 5
Barcode Badge Reader

option-badge-reader-bottom
1D Barcode Slot Reader Reads opaque (IR) or non-opaque Barcodes (visible)

Option 6
Side-mount Drivers License Reader + MSR

option-license-reader-side-a
2D Barcode License Reader Plus MSR Combo

Option 7
Bottom-mount 1D/2D Barcode Imager

option-barcode-bottom-a
1D, or 1D/2D Barcode Imager

Option 8
Plastic Keyboard with TrackballSide-mount 1D/2D Barcode Imager

option-barcode-side-a
Adjustable Tilt-angle

Option 9
Bottom-mount RFID Reader

option-rfid-reader-bottom
Reads many tag types 125kHz and 13.56MHz

Option 10
Side-mount Fingerprint Reader

option-fp-side
Fits Digital Persona U4500

Option 11
Cable Cover

option-cable-cover
Restricts Tampering with I/O

Option 12
Wall-mount SS Keyboard + Trackball

option wall-kb-d
Can Mount on Wall Under Touch AIO

Option 13
Webcam

options-webcam-mount
Top-mount or Internal-mount Webcam & MIC

Option 14
Surge Protection

option-surge-e
Voltage Spike/Surge Protector

Option 15
S80mm Thermal Printer Desktop Stand

option-print-stand-a
Mounts 12" to 21.5" AIO and Provides Built-in Printer

Option 16
Desktop Stand

options-desktop-a
Sturdy Steel Touch Stand Suitable for AIOs up to 21.5"

Specifications

CPU Type: J-1900 Fanless i3-6100 i5-6500 i7-6700
Clock Speed 2.0GHz 3.7GHz 3.2GHz~3.6GHz 3.4GHz~4.0 GHz
SLT Sizes Supported: 10.4~32 12~32 12~32 12~32
CPU Type Embedded Socket Socket Socket
RAM/RAM MAX 8GB DDR3L 16GB DDR4 16GB DDR4 16GB DDR4
HDD 500GB 1TB 2TB 500GB 1TB 2TB 500GB 1TB 2TB 500GB 1TB 2TB
Video LVDS LVDS LVDS LVDS
Audio Realtek ALC662 5.1 Realtek ALC662 5.1 Realtek ALC662 5.1 Realtek ALC662 5.1
WiFi Support Support Support Support
LAN RTL8111F 1000Mbps RTL8111F 1000Mbps RTL8111F 1000Mbps RTL8111F 1000Mbps
USB 2.0/3.0 2.0×3+3.0×1 2.0×2+3.0×2 2.0×2+3.0×2 2.0×2+3.0×2
RS-232 2 2 2 2
HDMI 1 1 1 1
VGA Out 1 1 1 1
Audio I/O Line Out + Mic Line Out + Mic Line Out + Mic Line Out + Mic
7th Gen SOCKETED CPU i3-7100 i5-7500 i7-7700
Clock Speed 3.9GHz 3.4GHz~3.8GHz 3.6GHz~4.2 GHz
SLT Sizes Supported: 12~32 12~32 12~32
CPU Type Socket Socket Socket
RAM/RAM MAX 16GB DDR4 16GB DDR4 16GB DDR4
HDD 500GB 1TB 2TB 500GB 1TB 2TB 500GB 1TB 2TB
Video LVDS LVDS LVDS
Audio Realtek ALC662 5.1 Realtek ALC662 5.1 Realtek ALC662 5.1
WiFi Support Support Support
LAN RTL8111F 1000Mbps RTL8111F 1000Mbps RTL8111F 1000Mbps
USB 2.0/3.0 2.0×2+3.0×2 2.0×2+3.0×2 2.0×2+3.0×2
RS-232 2 2 2
HDMI 1 1 1
VGA Out 1 1 1
Audio I/O Line Out + Mic Line Out + Mic Line Out + Mic
EMBEDDED CPU i3-6100U i5-4310U i5-6300U i5-7200U
Clock Speed 2.3GHz 2.0~3.0GHz 2.4~3.0GHz 2.5~3.1GHz
SLT Sizes Supported: 10.4~32 10.4~32 10.4~32 10.4~32
CPU Type Embedded Embedded Embedded Embedded
RAM/RAM MAX 16GB DDR3L 8GB DDR3L 16GB DDR3L 16GB DDR3L
HDD 500GB 1TB 2TB or SSD
Video LVDS
Audio Realtek ALC662 HD
WiFi Support Support Support Support
LAN RTL8111F 1000Mbps
USB 2.0/3.0 2.0×2+3.0×2 2.0×2+3.0×2 2.0×2+3.0×2 2.0×2+3.0×2
RS-232 2 2 2 2
HDMI 1 1 1 1
VGA Out 1 1 1 1
Audio I/O Line Out + Mic Line Out + Mic Line Out + Mic Line Out + Mic
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE – IF A CERTAIN SPEC IS CRITICAL TO YOU ALWAYS ASK
Android Specifications (optional)
Rockchip® RK3399 Double Cortex-A72 + Four Cortex-A53(2.0GHz) 64 bit
RAM 4GB DDR3
Memory 16GB Flash
Extended Storage SD Card Socket
OS Version 7.1
OS Language English (default, multi-language)
I/O USB2.0*2, RJ-45*1, SD socket*1, HDMI*1, DC*1, Audio*1
SLT Series LCD Display & Touch Screen Specifications:
Model SLT-10.1 SLT-10.4 SLT-12 SLT-12W
Touchscreen Projected Capacitive Multi-touch
Screen Size Diagonal 10.1″ 10.4″ 12.1″ 12.1″
Screen Aspect Ratio 16:9 4:3 4:3 16:10
Speakers Yes Yes Yes Yes
Screen Resolution (Native) 1366 x 768 1024 x 768 800 x 600 1280 x 800
LCD Brightness (LED) 250cd/m2 250cd/m2 300cd/m2 250cd/m2
LCD Contrast 800 to 1 800 to 1 800 to 1 800 to 1
Viewing Angle (H/V) 80/80/70/70 80/80/70/70 80/80/70/70 80/80/70/70
MTBF of LCD & Backlight >50,000 Hrs. >50,000 Hrs. >50,000 Hrs. >50,000 Hrs.
Mount Hole Pattern 100mm VESA 100mm VESA 100mm VESA 100mm VESA
Model SLT-15 SLT-15W SLT-15HD SLT-17
Touchscreen Projected Capacitive Multi-touch
Screen Size Diagonal 15″ 15.6″ 15.6″ 17″
Screen Aspect Ratio 4:3 16:9 16:9 4:3
Speakers Yes Yes Yes Yes
Screen Resolution (Native) 1024 x 768 1366 x 768 1920 x 1080 1280 x 1024
LCD Brightness (LED) 300cd/m2 300cd/m2 300cd/m2 300cd/m2
LCD Contrast 800 to 1 800 to 1 800 to 1 1000 to 1
Viewing Angle (H/V) 80/80/70/70 80/80/70/70 80/80/70/70 80/80/70/70
MTBF of LCD & Backlight >50,000 Hrs. >50,000 Hrs. >50,000 Hrs. >50,000 Hrs.
Mount Hole Pattern 100mm VESA 100mm VESA 100mm VESA 100mm VESA
Model SLT-17W SLT-18 SLT-18HD SLT-19
Touchscreen Projected Capacitive Multi-touch
Screen Size Diagonal 17.3″ 18.5″ 18.5″ 19″
Screen Aspect Ratio 16:9 16:9 16:10 4:3
Speakers Yes Yes Yes Yes
Screen Resolution (Native) 1920 x 1080 1366×768 1920 x 1080 1280 x 1024
LCD Brightness (LED) 300cd/m2 300cd/m2 300cd/m2 300cd/m2
LCD Contrast 1000 to 1 1000 to 1 1000 to 1 1000 to 1
Viewing Angle (H/V) 80/80/70/70 80/80/70/70 80/80/70/70 80/80/70/70
MTBF of LCD & Backlight >50,000 Hrs. >50,000 Hrs. >50,000 Hrs. >50,000 Hrs.
Mount Hole Pattern 100mm VESA 100mm VESA 100mm VESA 100mm VESA
Model SLT-19W SLT-21.5 SLT-24″ SLT-27″
Touchscreen Projected Capacitive Multi-touch
Screen Size Diagonal 19″ 21.5″ 24″ 27″
Screen Aspect Ratio 16:10 16:9 16:09 16:09
Speakers Yes Yes 8Ω 2W *2 8Ω 2W *2
Screen Resolution (Native) 1440 x 900 1920 x 1080 1920*1080 1920*1080
LCD Brightness (LED) 300cd/m2 300cd/m2 300 300
LCD Contrast 1000 to 1 1000 to 1 5000:1:00 1200:1:00
Viewing Angle (H/V) 80/80/70/70 80/80/70/70 89/89/89/89 85/85/80/80
MTBF of LCD & Backlight >50,000 Hrs. >50,000 Hrs. 50,000 Hours 50,000 Hours
Mount Hole Pattern 100mm VESA 100mm VESA
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE – IF A CERTAIN SPEC IS CRITICAL TO YOU ALWAYS ASK
>50,000 Hrs.
Mount Hole Pattern 100mm VESA 100mm VESA 100mm VESA 100mm VESA
Model SLT-19W SLT-21.5 SLT-24″ SLT-27″
Touchscreen Projected Capacitive Multi-touch
Screen Size Diagonal 19″ 21.5″ 24″ 27″
Screen Aspect Ratio 16:10  16:9 16:09 16:09
Speakers Yes Yes 8Ω2W *2 8Ω2W *2
Screen Resolution (Native) 1440 x 900 1920 x 1080 1920*1080 1920*1080
LCD Brightness (LED) 300cd/m2 300cd/m2 300 300
LCD Contrast 1000 to 1 1000 to 1 5000:01:00 1200:01:00
Viewing Angle (H/V) 80/80/70/70 80/80/70/70 89/89/89/89 85/85/80/80
MTBF of LCD & Backlight >50,000 Hrs. >50,000 Hrs. 50,000 Hours 50,000 Hours
Mount Hole Pattern 100mm VESA 100mm VESA
SPECIFICATIONS SUBJECT TO CHANGE WITHOUT PRIOR NOTICE – IF A CERTAIN SPEC IS CRITICAL TO YOU ALWAYS ASK
