TXJ Series Touch AIO

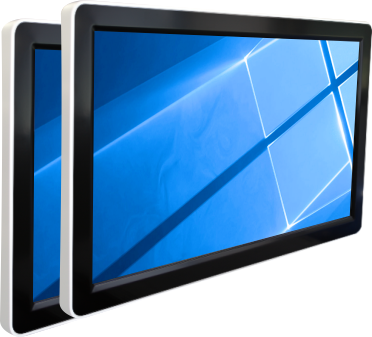

TXJ Series Touch Screen 12″ to 55″ All-in-Ones

txj-350-topa

Features and Options:

  • CPU choices include Intel J1900 or Intel Core-i3, i5, i7 CPUs
  • PCAP Multi-touch Touch in 12”, 15”, 17”, 18.5” and 21.5” Size Range
  • IR Multi-touch in 27”, 32”, 42”, 49”, 55” and 65” Size Range
  • Optional discreet 2GB graphics card
  • 16:9 Aspect Ratio, 1080 x 1920 Resolution
  • 8GB RAM / 32GB Max.
  • 128GB SSD
  • Integrated WiFi
  • Integrated 2x 2 Watt Speakers
  • Wall-mount
  • Kiosk-mount
  • Rugged metal enclosure
  • Windows 10 or 11 Installed
  • Custom Software Configuration
Power Filter Protection
Mounting Options

TXJ Series Touch AIO Layout & Features (typical)

txj-layout-750b

Touch AIO Peripheral Options

Option 1
Side-mount 3-Track MSR

option-msr-side-b
Magtek bi-direction, 3-track

Option 2
Bottom-mount 3-Track MSR

option-msr-bottom-a
Magtek bi-direction, 3-track

Option 3
Bottom-mount 3-Track MSR + Barcode

option-msr-barcode-bottom-b
Magtek bi-direction, 3-track 2D Barcode Imager

Option 4
Side-mount Chip Reader + 3-Track MSR

option-augusta-side-a
August Chip/MSR Combo

Option 5
Barcode Badge Reader

option-badge-reader-bottom
1D Barcode Slot Reader Reads opaque (IR) or non-opaque Barcodes (visible)

Option 6
Side-mount Drivers License Reader + MSR

option-license-reader-side-a
2D Barcode License Reader Plus MSR Combo

Option 7
Bottom-mount 1D/2D Barcode Imager

option-barcode-bottom-a
1D, or 1D/2D Barcode Imager

Option 8
Plastic Keyboard with TrackballSide-mount 1D/2D Barcode Imager

option-barcode-side-a
Adjustable Tilt-angle

Option 9
Bottom-mount RFID Reader

option-rfid-reader-bottom
Reads many tag types 125kHz and 13.56MHz

Option 10
Side-mount Fingerprint Reader

option-fp-side
Fits Digital Persona U4500

Option 11
Cable Cover

option-cable-cover
Restricts Tampering with I/O

Option 12
Wall-mount SS Keyboard + Trackball

option wall-kb-d
Can Mount on Wall Under Touch AIO

Option 13
Webcam

options-webcam-mount
Top-mount or Internal-mount Webcam & MIC

Option 14
Surge Protection

option-surge-e
Voltage Spike/Surge Protector

Option 15
S80mm Thermal Printer Desktop Stand

option-print-stand-a
Mounts 12" to 21.5" AIO and Provides Built-in Printer

Option 16
Desktop Stand

options-desktop-a
Sturdy Steel Touch Stand Suitable for AIOs up to 21.5"

TXJ Series Specifications

CPU J1900 Intel Core-i3 Intel Core-i5 Intel Core-i7
Panel PC Sizes: All Sizes 15″ to 65″ 18.5″, 21.5″, 32″, 42″, 47″, 55″, 65″
Clock Speed 2.0GHz. 3.6GHz. 3.2GHz. 4GHz.
CPU Type Onboard Socketed LGA1150
RAM/RAM MAX 4GB/8GB 4GB/16GB 8GB/16GB 16GB/16GB
HDD 500GB 500GB
Video Intel Intel HD
Optional Discreet Video NA 2GB Radeon 7450 (32″ to 65″ Sizes Only)
Audio ALC662 Realtek 662
WiFi Integrated Integrated
LAN 1GB RLT8111C 1GB RLT8111D
USB 2.0/3.0 2-Feb 2-Feb
HDMI 1 1
VGA Out 1 1
Audio I/O Line Out/Mic In Line Out/Mic In
Android Specifications (optional)
Rockchip® RK3399 Double Cortex-A72 + Four Cortex-A53(2.0ghZ) 64 bit
RAM 4GB DDR3
Memory 16GB Flash
Extended Storage SD Card Socket
OS Version 7.1
OS Language English (default, multi-language)
I/O USB2.0*2, RJ-45*1, SD socket*1, HDMI*1,DC*1, Audio*1
TXJ-12M TXJ-15M TXJ-17M TXJ-18.5M
Display
Size 12″ 15″ 17″ 18.5″
Drawing TXJ-12 TXJ-15 TXJ-17 TXJ-18
Aspect Ratio (4:3) (4:3) (4:3) (16:9)
Native Resolution 800 x 600 1024 x 768 1280 x 1024 1366 x 768
Contrast (400:1) (550:1) (550:1) (550:1)
Response Time 6 m/sec 6 m/sec 6 m/sec 6 m/sec
Brightness 300cd/㎡ 350cd/㎡ 350cd/㎡ 200cd/㎡
High Bright (optional) 1000NIT 1000NIT 1000NIT 1000NIT
Viewing Angle 135°/130° 135°/130° 135°/130° 135°/130°
MTBF LCD & LED >50,000 hrs.
Touch Multi-touch PCAP
Environmental
Operation temperature  0 to 40C
Operation Humidity 20%-80%RH
Storage Temperature  -20C to 60C
Storage Humidity 10%-75%RH
Power Supply (12VDC Adapter)
AC Input 110V~240V 110V~240V 110V~240V 110V~240V
TXJ-21.5 TXJ-27M TXJ-32M TXJ-43M TXJ-49M
Display
Size 21″ 27″ 32″ 43″ 49″
Drawing TXJ-21.5 TXJ-27 TXJ-32 TXJ-43
Aspect Ratio (16:9) (16:9) (16:9) (16:9) (16:9)
Native Resolution 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080 1920 x 1080
Contrast (2000:1) (2000:1) (2000:1) (2000:1) (2000:1)
Response Time 6 m/sec 6 m/sec 6 m/sec 6 m/sec 6 m/sec
Brightness 200cd/㎡ 300cd/㎡ 300cd/㎡ 500cd/㎡ 500cd/㎡
High Bright Model (optional) 1000NIT 1000NIT 2000NIT 2000NIT 2000NIT
Viewing Angle 176°/176° 176°/140° 176°/176° 176°/176° 176°/176°
Touch Multi-touch PCAP IR 6 Point or PCAP IR 10 Point IR 10 Point IR 10 Point
MTBF 50,000 hrs. 50,000 hrs. 50,000 hrs. 50,000 hrs. 50,000 hrs.
Environmental
Operation temperature 0 to 40C
Operation Humidity 20%-80%RH
Storage Temperature -20C to 60C
Storage Humidity 10%-75%RH
Power Supply
AC Input 110V~240V 110V~240V 110V~240V 110V~240V 110V~240V
Dimensions/Weight
Dimensions mm 568x360x68 705x438x64 798x493x89 1029x622x108
Weight lbs. 19 31 48 72 88
TXJ-55M TXJ-65M
Display
Size 55″ 65″
Drawing TXJ-55 TXJ-65
Aspect Ratio (16:9) (16:9)
Native Resolution 1920 x 1080 1920 x 1080
Contrast (2000:1) (2000:1)
Response Time 6 m/sec 6 m/sec
Brightness 500cd/㎡ (2000NIT option) 500cd/㎡ (2000NIT option)
Viewing Angle 176°/176° 176°/176°
MTBF LCD & LED >50,000 hrs.
Touch IR 10 point Multi-touch
Environmental
Operation temperature 0 to 40C
Operation Humidity 20%-80%RH
Storage Temperature -20C to 60C
Storage Humidity 10%-75%RH
Power Supply
AC Input 110V~240V
Dimensions
mm (W x H x D) 1318 x 789 x 95 1549 x 924 x 102
Mounting (M8 Screw Size) 754 x 450mm 600 x 500mm
Weight
Net Weight 100 lbs. 142 lbs.
Crated Weight 150 lbs. 200 lbs.

Limited Warranty
